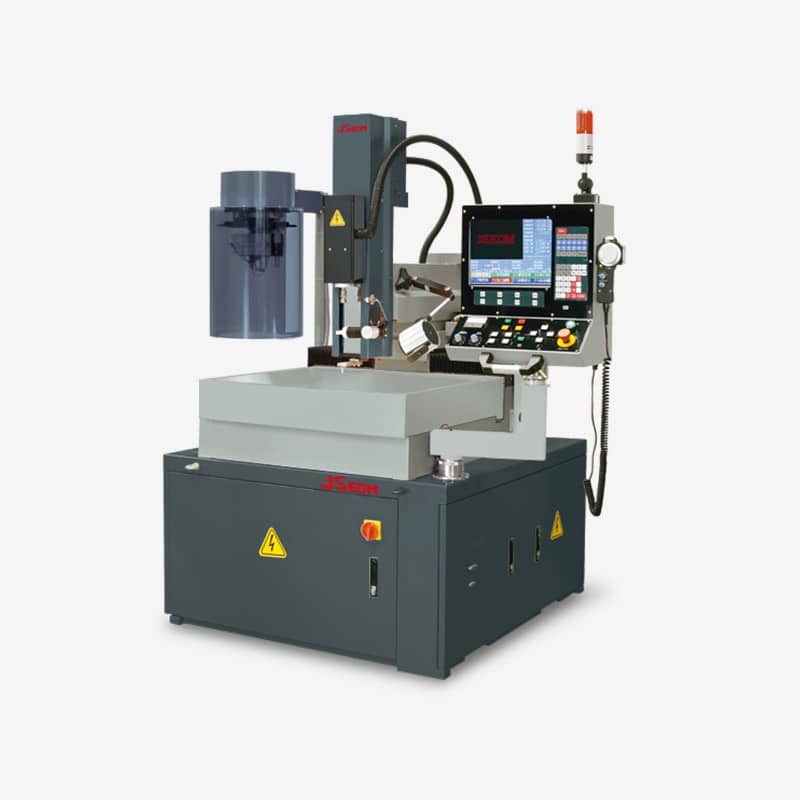

CNC-5040AT

CNC-5040AT


ATC Series

  • 5040AT | 5060AT | 4030AT | D2535T

CNC Series

  • 5040A | 5060A | D4030A | D2535A | D2335

Manual Series

  • AD-40A | AD-30A | AD-30 | AD-20A | AD-20
  • TABLA BOYUTLARI

    600x490 mm

  • MAKS. İŞLENEBİLİR PARÇA AĞIRLIĞI

    500 kgs

  • MAKS. İŞLENEBİLİR PARÇA BOYUTLARI

    1185x740 mm

  • DIELEKTRIK

    Water

  • TABLA HAREKET KABİLİYETİ X, Y

    500x400 mm

  • DIELEKTRIK KAPASİTESİ

    100 Litres

  • Z EKSEN HAREKETİ

    350 mm

  • MAKINE AĞIRLIĞI

    2100 / 2300 kg

  • RAM SERVO HAREKETİ

    350 mm

  • MAKINE BOYUTLARI

    2300x1800x2240 mm

  • MAKS. ELEKTROT UZUNLUĞU

    400 mm

  • MAKİNE TİPİ

    Traveling Head

  • ELEKTROT YARIÇAPI

    Ø0.2~Ø3.0 mm

CNC Drilling EDM ,Fast - Stable - Accurate, Conversational Interface

Spindle



CNC Series | 5040A | 5060A | D4030A | D2535A | D2335
  • Precision servo motors on X, Y, Z axis. The design provides excellent stability during drilling.
  • Provides 1μ optical scale, linear slideway and ballscrew to ensure accurate movement.
  • Reads NC program, G-code and DXF files directly. Finds the cutting start point automatically and begins the fine hole drilling process.
  • When NC program is not available, the machining coordination can be inputted directly.
  • Automatic centering, edging and internal diameter detection.
  • Coordinates can rotate to any angle.
  • Drilling capacity from 0.2mm to 3.0mm.Brass or copper electrodes available.
  • Mirror image function.
  • Automatically illustrates the path of current andnext drilling position with colors.
  • Z-axis auto reset and depth calculation.(Z-axis checks hole depth automatically, and returns to complete any that is too shallow.)
  • Data input by USB or network transfer.
  • Simple and user-friendly interface.

Manual Drilling EDM, With ZNC Function

3 Axes D.R.O. Set the depth that you need to drill.



Manual Series | AD-40A | AD-30A | AD-30 | AD-20A | AD-20
  • Precision servo motor control for stable drilling.
  • Designed for drilling hardened tool steel,carbides and other conductive materials.
  • Suitable for larger workpieces and plastic molds.
  • Drilling capacity from 0.2mm to 3.0mm.Brass or copper electrodes available.
  • Automatic pressure release function.
  • Long life work table made of stainless steel.

Processing Setting





Mirror Function
  • You can choose any axis you want to mirror.It’s easy to read from the screen.
Functional Set Up
  • You can set up the starting hole and stop hole Different color has different meaning.
Optional Accessories

ATC Precision Tool Holder

ATC Collet Holder

Filtration Water Tank

Machining Samples



Material

Aluminum

Thickness

80 mm

Diameter

0.5 mm

Material

Tungsten Steel

Thickness

20 mm

Diameter

0.5 mm

Before

Material

SKD-11

Thickness

5 mm

Diameter

0.15 mm

After (Speaker Grille)

Diameter

0.3 mm
