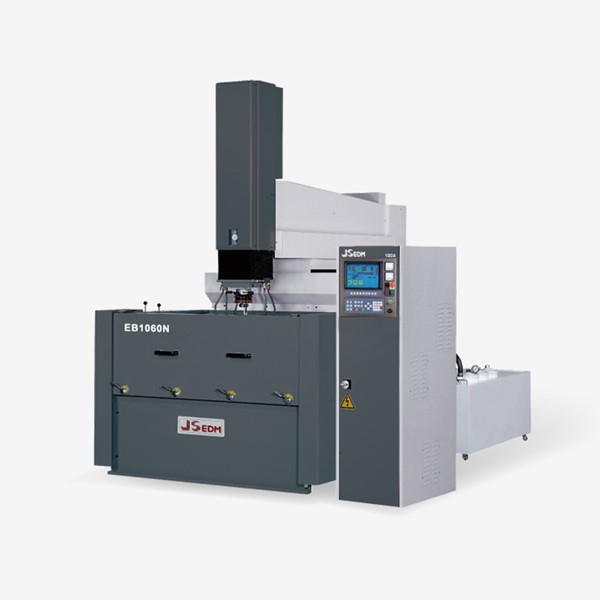

EB1060N

EB1060N


EBN (ZNC) Machine Structure

  • The machine frame has run through FC30 by having heat treatment and annealing process to ensure the metal with high toughness and prevent deformation.
  • The working table has gone through high frequency induction hardening and surface polishing to increase hardness and decrease tolerance.
  • Ball screws are utilized in X, Y Axis. (EB304B, EB606N, EB707B, EB808B)
  • One V and one flat design for maximum accuracy. (EB304B, EB606N, EB707B, EB808B)
  • The contacting faces of X, Y Axis are TURICE-B for smoother movement. (EB304B, EB606N, EB707B, EB808B)
  • Linear Guide Way and High Accuracy screw are used on Z axis, with PWM servo system (Same class as CNC model) can perform maximum working efficiency. (EB304B, EB606N, EB707B, EB808B)
  • Back slide is provided for Z axis. (EB304B, EB606N, EB707B, EB808B)
  • Remote Controller is provided to the user.
  • Model that travels more than 800mm on both X, Y axis (EB860N), utilizes precision ball screws on X, Y, Z axis.
  • Model that travels more than 800mm on both X, Y axis (EB860N), utilizes precision Linear Guide Way on X, Y, Z axis.
  • A standard Up/Down door is installed in model that travels more than 800mm on both X, Y axis (EB860N).
  • Model that travels more than 800mm on both X, Y axis (EB860N), the movement of X, Y axis are controlled by servo motor.
  • Model that travels more than 800mm on both X, Y axis (EB860N), the movement of the X, Y axis are relied on a movable column.
MODELEB1060N
İŞ TANKI KAPASİTESİ1900x1100x620 mm
İŞ TANKI BOYUTU1250x750 mm
X EKSEN HAREKETİ1000 mm
Y EKSEN HAREKETİ600 mm
Z EKSEN HAREKETİ500 mm
TABLA ELEKTROT YUVASI ARASI MESAFE450-950 mm
MAKS. ELEKTROT AĞIRLIĞI350 Kg
MAKS. İŞ PARÇASI AĞIRLIĞI4500 Kg
TANK KAPASİTESİ1600 L
MAKİNE DIŞ BOYUTLARI3600x3250x3200 mm
MAKİNE AĞIRLIĞI5200 Kg
MAKS. İŞLEME AKIMI90A / 120A
MAKS. GÜÇ GİRİŞİ10kVA / 13kVA
MAKS. İŞLEME KAPASİTESİ600 / 800
MİNİMUM ELEKTROT AŞINMA ORANI0,15%
YÜZEY RA DEĞERİRa 0.2µm
MİN DRO HASSASİYETİ0.005 mm

EBN Control Screen Description
(AI / FUZZY / Control)

EBN (ZNC) controller specification
  • Auto Index has been introduced to the controlling system to be more user friendly. The new function allows the user to select the conditions (material of the work piece, depth, working area, etc.) in order to generate the sparking parameter.
  • Sparking parameters (ON Time, OFF Time, Working Time, Jump Height, Jump Speed, etc.) are able to be adjusted during machining via FUZZY in order to improve the sparking efficiency and the quality of the final product.
  • Color LCD. PC Base, 32bit Industrial Level Computer (IPC).
  • Chinese / English and Inch / Metric Mode.
  • The Spark Circuit Design includes MOS-FET high power transistor and High Speed POWER-SINK reduce electrode wear and increase working speed.
  • Reduce electrode wear and increase working speed.
  • Modules insert card design is used in power controller for easily maintain.
  • Two groups of coordinates are both switchable and editable ; this helps user to set the reference point easier.
  • Allow user to have the option of choosing absolute depth or relative depth based on the preference.
  • Sparking parameter and depth input are displayed under the same mode for user to read easier.
  • 200 lines of working conditions are provided in the system, user can select any block as start and ending line. In addition,the system can save up to 50 files.
  • The Jog mode includes 3 functions, Jog, Feed and Protect / Unprotect switch. Regarding to the Jog and Feed function, Jog mode has 4 speeds (x5.x50.x250.x500μm) allow user to have the flexibility when adjusting the position of the workpiece and z-axis.
  • The Z-Axis Alignment function can be operated without using Manual Edge Find so that the time for edge find is reduced.The value of current can be changed as needed.
  • EDM allows the cutting process to be automatized, start from rough cut to fine finish.
  • A standard EDM features the Z-Axis lock function allows to expand the orbiter.
  • The system features the Center Find function which helps the user during alignment on a circular workpiece.
  • The Z-axis features multiple kinds of slag tapping. This function is utilized based on various of machining such as deep machining, corner sharpening, machining at large area, machining on thin workpiece, tilt machining, etc.
Standard Accessories

Work head

Tool box

Automatic fire extinguisher

Work lamp

Optional Accessories

Permanent magnetic chuck

CNC oblique loran

3R / EROWA Clamping tool

  • Super Sparking : Able to generate a high energy pulse of current instantly. This function is used on steel or tungsten steel alloy that have 60 degree of hardness or above.
  • DC servo motor control is able to add on X/Y axis for model EB707B & EB808B.
  • The resolution of the linear guide can upgrade to 0.001mm.
  • All models (except for 304B & 606N) can upgrade to PNC or CNC control system.

High precision mold machining

Plastic Injection Mold Application
High Precision ZNC Mirror Finishing

Electrode Material

Copper

Workpiece Material

NAK80

Sparking Range

Ø20mm

Surface Roughness

Ra 0.2μm / Ra 0.1μm (S.F. System)

High Precision Machining Process Result Comparison

CNC EB 600L (S.F.)

Electrode Material

Copper

Workpiece Material

NAK80

Sparking Range

Ø55mm

Sparking Depth

0.3mm

Processing time

7 hours

Surface Roughness

Ra 0.19μm

CNC EDM

Electrode Material

Copper

Workpiece Material

NAK80

Sparking Range

Ø55mm

Sparking Depth

0.3mm

Processing time

5 hours

Surface Roughness

Ra 0.33μm

ZNC EDM

Electrode Material

Copper

Workpiece Material

NAK80

Sparking Range

Ø55mm

Sparking Depth

0.3mm

Processing time

3.5 hours

Surface Roughness

Ra 1.55μm

Graphite Sparking
& Shoe Mold Application


Wild Range CNC Mirror Finishing

Electrode Material

Copper(Ø55mm)

Workpiece Material

NAK80

Sparking Range

Ø55mm

Surface Roughness

Ra 0.2μm / Ra 0.1μm (S.F. System)
