MM75B

Hakan CNC

MM75B


Seibu successfully developed the world's first CNC Wire Electrical Discharge Machine(W-EDM) in 1972.
Then, we released new model M series of high-speed, high-precision wire EDM and MM series with improved static accuracy in 2003,
then released ultra-precision wire EDM “MP250S” in 2005.In 2009, SuperMM series was born as more sophisticated ultra-precision model.

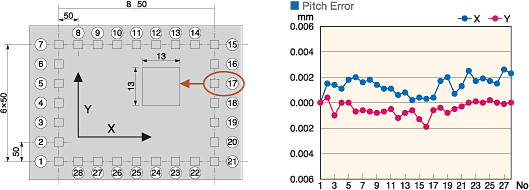

Pitch accuracy of 2μm can be consistently achieved with SuperMM series that has traditional scraping technique “KISAGE”.
We are sure our customers will be very satisfied with Super MM series by the marvelous cost-benefit performance.

Professional Pefformance to Achieve Ultra-Precision Cutting

Traditional Technique "KISAGE"

High quality performance is accomplished in MM series using a traditional scraping technique called “KISAGE”.
MM series has achieved cutting accuracy in submicron and long term stable pitch accuracy.

Traditional Technique KISAGE

Much Improved Cutting Accuracy

Can meet ultra-precision metal mold!
Operator can do cutting such as progressive plate cutting with confidence by use of the world’s top-class AWF.

Much Improved Cutting Accuracy

Thermal Adjust 24 (Patent Pending)

This automatically corrects the displacement of wire vertical position due to the surrounding temperature change or effect of the heat by electric discharge.
This function can enhance the shape accuracy of product.
It is also possible to obtain better cutting accuracy without spending money ontemperature control facility.

MM35B

MAKS. İŞLENEBİLİR PARÇA BOYUTU 600×550×190mm
MAKS. İŞLENEBİLİR PARÇA AĞIRLIĞI 350kg
EKSEN HAREKET MESAFELERİ X / Y / Z 350×250×200mm
KABLO ÇAPI 0.07mm to 0.3ｍｍ dia.(φ0.2ｍｍ dia,is standard.)
OTOMATİK KABLO BESLEME AWF-4　Equipped as standard
U-V EKSEN HAREKETİ ±60×±60mm
MAKS. KONİKLİK AÇISI ±10°
(190mm work thickness)（±45°/40ｍｍ： option）
MAKİNE BOYUTLARI 1,370ｘ1,785ｘ1,990ｍｍ
MAKİNE AĞIRLIĞI 2,900kg

MM50B

MAKS. İŞLENEBİLİR PARÇA BOYUTU 800×650×270mm
MAKS. İŞLENEBİLİR PARÇA AĞIRLIĞI 800kg
EKSEN HAREKET MESAFELERİ X / Y / Z 500×350×280mm
KABLO ÇAPI 0.07mm to 0.3ｍｍ dia.(φ0.2ｍｍ dia,is standard.)
OTOMATİK KABLO BESLEME AWF-4　Equipped as standard
U-V EKSEN HAREKETİ ±60×±60mm
MAKS. KONİKLİK AÇISI ±10°
(270ｍｍ work thickness)（±45°/40ｍｍ： option）
MAKİNE BOYUTLARI 1,680ｘ1,915ｘ2,070ｍｍ
MAKİNE AĞIRLIĞI 3,400kg

MM75B

MAKS. İŞLENEBİLİR PARÇA BOYUTU

900ｘ700ｘ220mm
MAKS. İŞLENEBİLİR PARÇA AĞIRLIĞI 1,000ｋｇ
EKSEN HAREKET MESAFELERİ X / Y / Z 750ｘ500ｘ310mm
KABLO ÇAPI 0.07mm to 0.3ｍｍ dia.(φ0.2ｍｍ dia,is standard.)
OTOMATİK KABLO BESLEME AWF-4　Equipped as standard
U-V EKSEN HAREKETİ ±60ｘ±60ｍｍ
MAKS. KONİKLİK AÇISI ±10°
(300ｍｍ work thickness)（±45°/40ｍｍ： option）
MAKİNE BOYUTLARI 2,280ｘ2,200ｘ2,170ｍｍ
MAKİNE AĞIRLIĞI 5,100kg

＊Max.submerged cutting depth is 250mm. Flush cutting available for work 220 to 270mm high.
