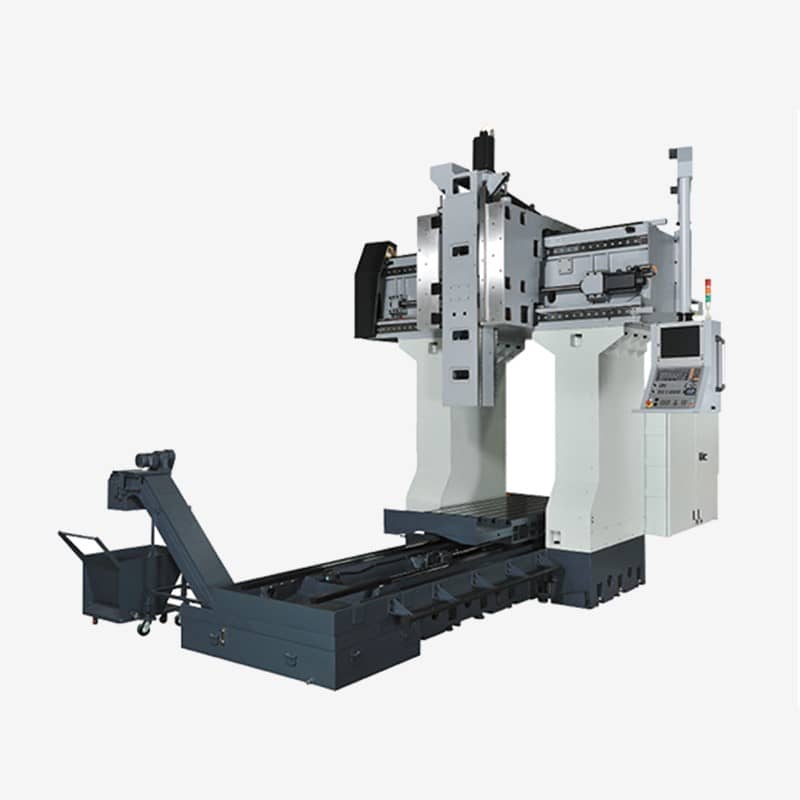

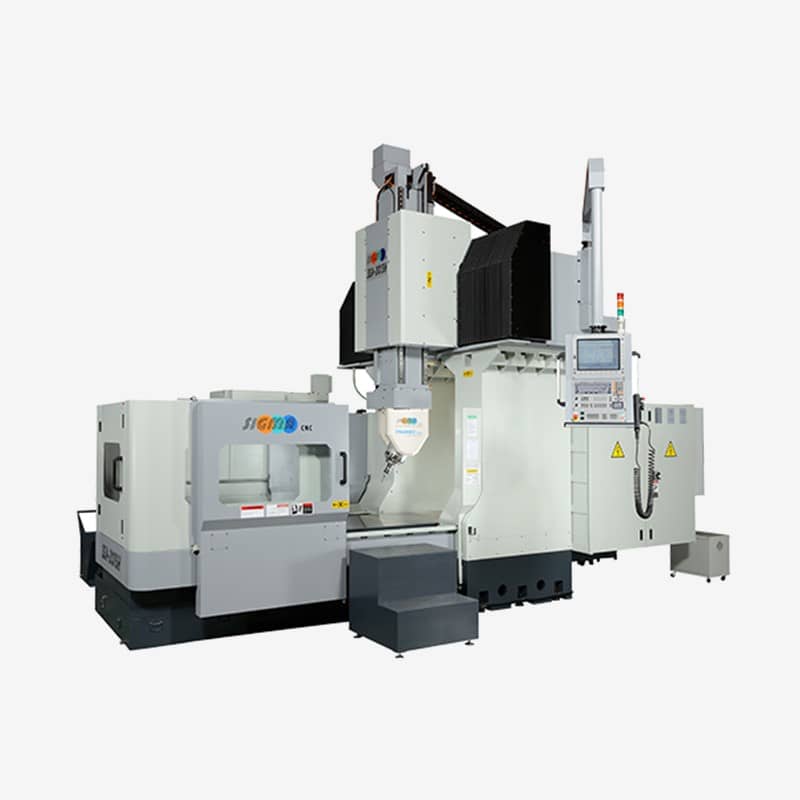

S5A series
| MODEL | S5A-2015H |
| X EKSEN HAREKETİ | 2040 mm |
| Y EKSEN HAREKETİ | 1500 mm |
| Z EKSEN HAREKETİ | 760 (1000) mm |
| C EKSEN HAREKETİ | ±275° speed 40°/S |
| A EKSEN HAREKETİ | 95°/125°speed 41.67°/S |
| TABLO BOYUTU | 2000x1000 mm |
| T-KANALLARI | 22 mm |
| TABLA YÜKLEME KAPASİTESİ | 3500 mm |
| KOLON ARASI MESAFE | 1200 mm |
| SPINDLE UCU VE TABLA ARASI MESAFE | 150 ~ 910 (150 ~ 1150) |
| FENER MİLİ KONİKLİĞİ | ISO NO.40, HSK-A63 |
| SPINDLE DEVRİ | 3000 ~ 18000 RPM |
| ANA MOTOR GÜCÜ | S1 25Kw constant from 3000 rpm, TORQUE S1 89N-m up to 3000 rpm |
| X,Y BOŞTA HAREKET HIZI | 24000 mm/min |
| Z EKSENİ BOŞTA HAREKET HIZI | 20000 mm/min |
| KESME İLERLEME HIZI | 15000 mm/min |
| MAGAZİN TAKIM KAPASİTESİ | (20/32/40) pcs |
| MAKS. TAKIM ÇAPI | Ø80 / Ø125 |
| MAKS. TAKIM UZUNLUĞU | 250 mm |
| MAKS. TAKIM AĞIRLIĞI | 6.5 Kgs |
| TAKIM SEÇME TÜRÜ | |
| TAKIM DEĞİŞTİRME ZAMANI | 4.5 sec |
| GÜÇ GEREKSİNİMİ | 50 kVA |
| ALAN GEREKSİNİMİ | 9100x5900 mm |
| MAKİNE YÜKSEKLİĞİ | 5030x5650 mm |
| MAKİNE AĞIRLIĞI | 19000 Kgs |
| KONTROL SİSTEMİ | Heidenhain, Siemens, Fanuc series etc. |
- LUBRICATION SYSTEM
- GLAZED WINDOW-TYPE SPLASH GUARD
- SCREW-TYPE CHIP CONVEYOR
- LINK-TYPE CHIP CONVEYOR
- COOLANT EQUIPMENT
- SPINDLE OIL COOLER
- Z-AXIS HYDRAULIC BALANCE UNIT
- PNEUMATIC UNIT
- AIR BLOW FOR CHIP ( BY M-CODE )
- WORK LAMP
- AUTO POWER-OFF
- M.P.G
- PROGRAM END&ALARM LAMP
- RS-232 INTERFACE
- LEVELING BLOCK AND BOLTS
- TOOL KIT
- MAINTENANCE AND OPERATION MANUAL
- CONTROLLER OPERATION MANUAL AND ELECTRICAL CIRCUIT DIAGRAM
- INSPECTION LIST
- AUXILIARY TABLE
- NC(ROTARY TABLE,INDEX TABLE)
- 20、32、40ATC MAGAZINE CAPACITY
- TOOL PRESETTER
- AUTO TOOL LENGTH DIAMETER MEASUREMENT
- AUTO TOUCH PROBE SYSYTEM
- LINEAR SCALE FEEDBACK
- COOLANT THROUGH SPINDLE SYSTEM
- COOLANT AUTO AIR MIST DEVICE
- SPINDLE THERMAL COMPENSATION
- AVALIABLE WITH DIFFERENT SPINDLE SPEC & RPM
- MANUAL FULL SPLASH GUARD
